Klock Werks Ergo Handlebars for HD FLH '86-'23

Ergonomically correct wrist position not only reduces stress to your wrists, but may help reduce that pinched feeling between your shoulder blades after a day of riding!

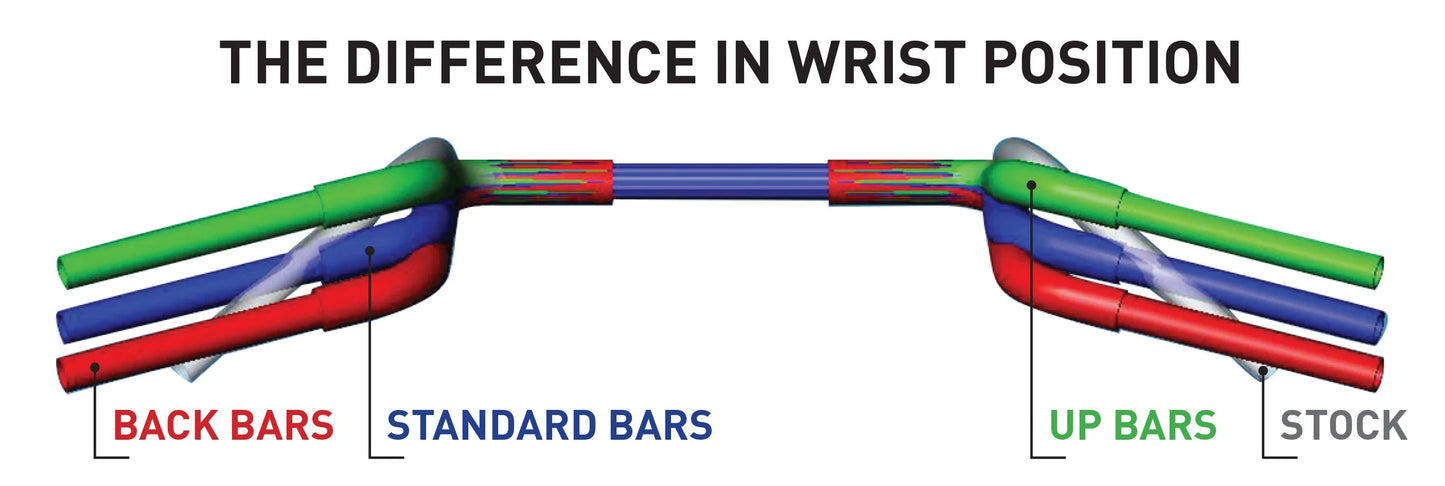

Ergo bar options are designed specifically to adjust your wrist to a more natural relaxed position, vs. riding with stock bars. Ergo bars accept stock controls/housings, and are pre-drilled and slotted for internal wiring. They are designed to work with stock length cables, wires and heated grips.*

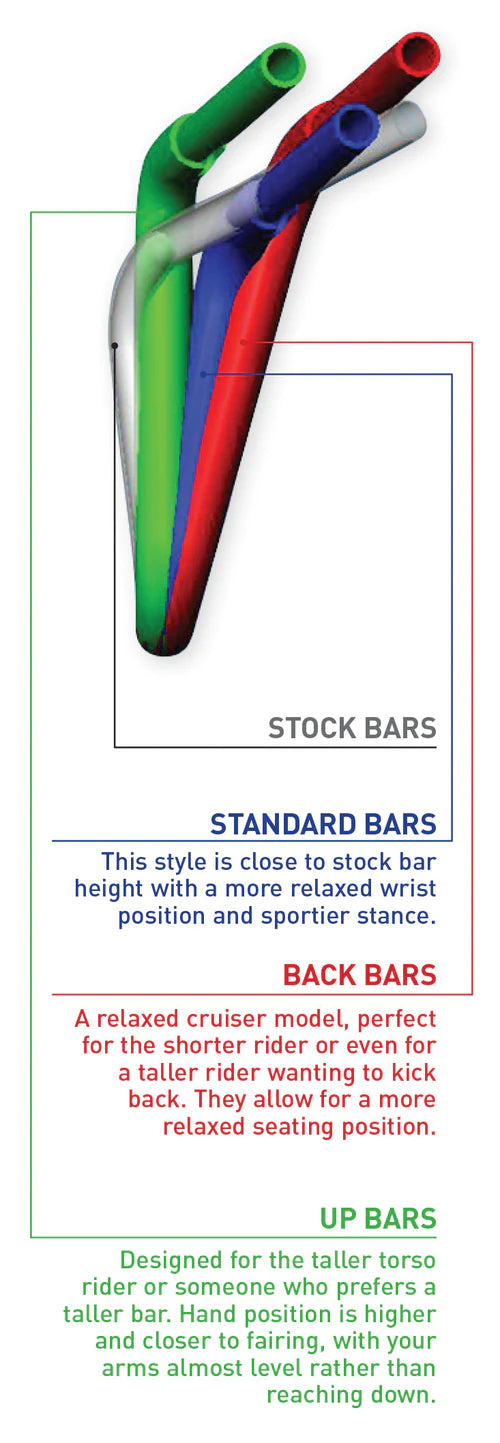

Ergo Up bars are designed for the taller torso rider or someone who prefers a taller bar. Hand position is higher and closer to the fairing, with your arms almost level rather than reaching down.

Ergo Back bars are a relaxed cruiser model, perfect for the shorter rider or even for a taller rider wanting to kick back. They allow for a more relaxed seating position.

*For easier installation of 2014-2023 Ergo Bars, we recommend a wire extension kit. Drag Specialties part # 2120-0783.

FITMENT

• For 1986-2023 FLHT, FLHX, HD FL Trike

• Custom Applications

• Rise: 12-3/4", Width: 35", Center Width: 14.5"

• Pullback: 3" (ERGO UP), 3-1/2" (ERGO BACK)

Installation Instructions for Ergo Bars for H-D 1986-2013 FLH

Installation Instructions for Ergo Bars for H-D 2014+ FLH
